Visualizing Nets

See also

Visualizing ddg objects in Blender for a general guide on visualization of ddg objects in Blender and usage of to_blender_object() and to_blender_object_helper().

For visualization in Blender, a SmoothNet (or a SmoothCurve), has to be converted to a DiscreteNet (or a DiscreteCurve), which is achieved by sampling. This can be done manually, using to_smooth_net(), and the DiscreteNet can be handed to to_blender_object(). Alternatively, the SmoothNet can be handed to to_blender_object_helper() which combines the sampling and the call of to_blender_object().

Using to_blender_object

A SmoothNet can be converted to a DiscreteNet via sampling. The sampling is passed to the function sample_smooth_net.

>>> import ddg

>>> snet = ddg.nets.net_generators.spheres_and_circles.circle((0, 0, 0), 1)
>>> dnet = ddg.sample_smooth_net(snet, sampling=[0.5, 10, "c"])

See also

Guide on sampling a SmoothNet.

The DiscreteNet can be visualized:

>>> blender_object = ddg.to_blender_object(dnet)

See also

Usage of to_blender_object.

General arguments of the function to_blender_object() can be found in its api documentation: to_blender_object().

Depending on the type of the DiscreteNet (DiscreteNet, DiscreteCurve, PointNet), additional arguments can be given to to_blender_object():

Options for DiscreteNet:

boundingint (default=10)

Used to bound unbounded domains of nets.

only_wirebool (default=False)

When True, only the wireframe of the net will be created.

Options for DiscreteCurve:

boundingint (default=10)

Used to bound unbounded domains of nets.

curve_typestring (default=’POLY’)

Blender curve type. See the Blender docs for all available types.

curve_propertiesdictionary (default={‘bevel_depth’: 0.015})

Dictionary containing Blender curve properties. See the Blender docs for all available properties.

Options for PointNet:

sphere_radiusfloat (default=0)

Radius of the sphere representing a point.

sphere_subdivisionint (default=3)

How many subdivisions will be applied to the sphere.

Using to_blender_object_helper

The function to_blender_object_helper() combines the following

• easy handling of commonly used keyword arguments

• conversion to objects that can be visualized

• calling the function to_blender_object().

A SmoothNet can be handed directly to to_blender_object_helper() together with a sampling.

>>> blender_object = ddg.to_blender_object_helper(snet, sampling=[0.5, 10, "c"])

See also

Usage of to_blender_object_helper.

General arguments of the function to_blender_object_helper() can be found in its api documentation: to_blender_object_helper().

Depending on the type of net additional arguments can be handed over or might be required:

Options for SmoothNet:

samplinglist, int or float

See ddg.datastructures.nets.conversion.sample_smooth_domain().

anchorlist or None

Anchor point for sampling process.

atollist, int or float

Tolerance(s) for sampling process.

Options for DiscreteNet:

boundingint (default=10)

Used to bound unbounded domains of nets.

only_wirebool (default=False)

When True, only the wireframe of the net will be created.

Options for DiscreteCurve:

boundingint (default=10)

Used to bound unbounded domains of nets.

curve_typestring (default=’POLY’)

Blender curve type. See the Blender docs for all available types.

curve_propertiesdictionary (default={‘bevel_depth’: 0.015})

Dictionary containing Blender curve properties. See the Blender docs for all available properties.

Options for PointNet:

sphere_radiusfloat (default=0)

Radius of the sphere representing a point.

sphere_subdivisionint (default=3)

How many subdivisions will be applied to the sphere.

Nets with depth need to be handled with care:

Warnings

This function can only handle DiscreteNets and DiscreteCurves as nets with depth. Not supported for SmoothNets and SmoothCurves. Also in the case of DiscreteNets and DiscreteCurves the net must consist of either

• EmptyNets

• PointNets

• DiscreteNets

• Half-edge Objects

• Collections of either

Examples

The general process for visualizing nets was outlined above. In this section, we give examples for some extra functionality. We start with bounding boxes:

While in our library, DiscreteNets and DiscreteCurves are more or less the same thing, they result in different objects, Blender Meshes and Blender Curves, after conversion. In particular, mesh and bmesh transformations can not be applied to curves. To cut an object inside a bounding box, we need to use ddg.visualization.blender.bmesh.cut_bounding_box() for 2D DiscreteNet objects but ddg.datastructures.nets.utils.cut_bounding_box() for DiscreteCurve objects. These work quite differently: The first is applied after conversion to the Blender Mesh and the second to the DiscreteCurve, before conversion to Blender.

Let’s see an example for each of these cases. Let’s start with curves:

We will start with a simple helix curve. Here we simply define a function that parametrizes the helix and then form the curve using SmoothCurve (you can also use SmoothNet, which will return a SmoothCurve automatically). We convert this smooth curve to a DiscreteNet by using sample_smooth_net(). The net is then converted to blender_object using to_blender_object().

>>> import numpy as np

>>> def helix_parametrization(t):
...     return np.array([np.cos(t), np.sin(t), 0.1 * t])
...

>>> helix_smooth = ddg.SmoothCurve(helix_parametrization, [-np.inf, np.inf])
>>> helix_discrete = ddg.sample_smooth_net(helix_smooth, sampling=[0.1, 500, "c"])
>>> bobj = ddg.to_blender_object(helix_discrete)

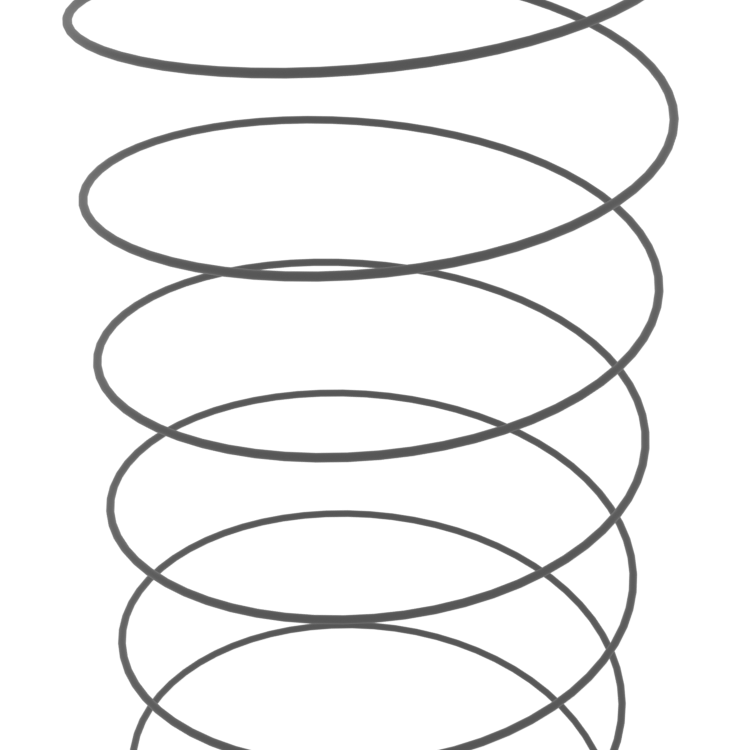

Right now, the length of the helix is determined by the sampling somehow, but an easier way to gain more control over this is to use ddg.datastructures.nets.utils.cut_bounding_box(). For example, we might only want to only see two turns of the helix:

>>> helix_bounded = ddg.datastructures.nets.utils.cut_bounding_box(
...     helix_discrete, (np.inf, np.inf, 2 * 0.1 * np.pi)
... )
>>> bobj_bounded = ddg.to_blender_object(helix_bounded)

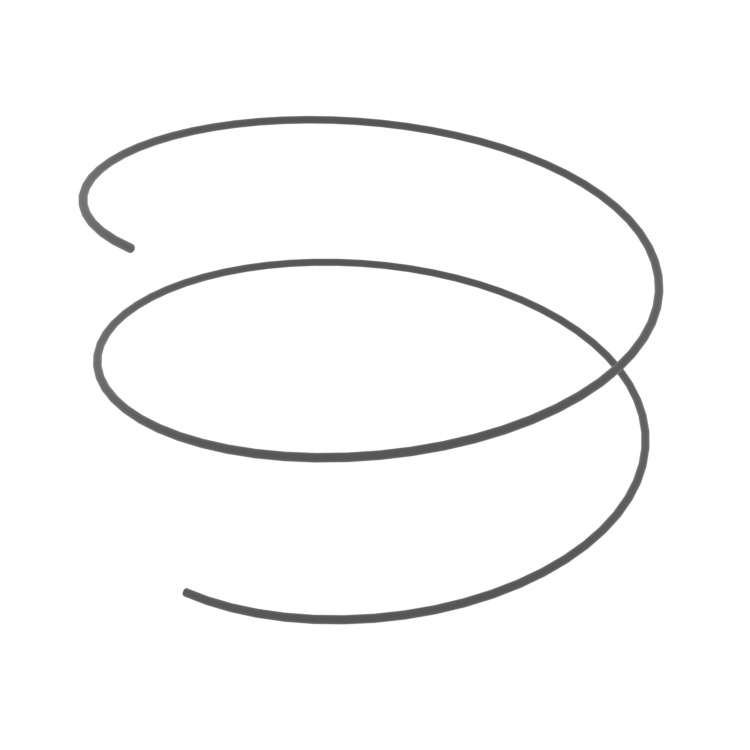

The 3-tuple \((a, b, c)\) means that the curve will be intersected with the axis-parallel, centered at 0 cuboid \([-a, a] \times [-b, b] \times [-c, c]\). We get the following picture:

Let’s do the same thing but with a surface instead of a curve. Sticking with the helical theme:

>>> def helicoid_parametrization(u, v):
...     return np.array([u * np.cos(v), u * np.sin(v), 0.2 * v])
...

>>> helicoid_smooth = ddg.SmoothNet(
...     helicoid_parametrization, [[-np.inf, np.inf], [-np.inf, np.inf]]
... )
>>> helicoid_discrete = ddg.sample_smooth_net(
...     helicoid_smooth, sampling=[0.02, 300, "c"]
... )
>>> bobj = ddg.to_blender_object(helicoid_discrete)

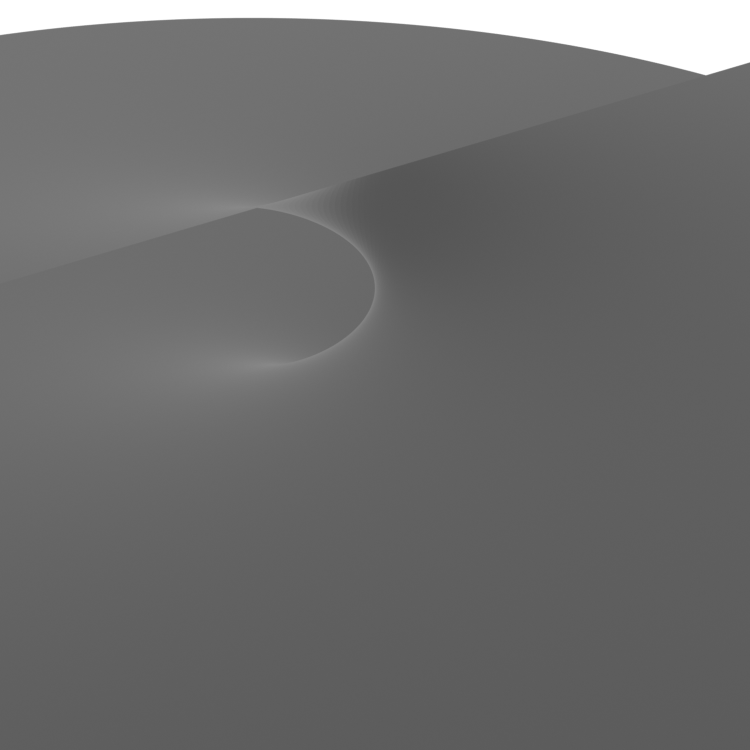

produces the following not so useful image:

Let’s bound the surface so we can actually see something. In the case of surfaces we have to use ddg.visualization.blender.bmesh.cut_bounding_box() as a bmesh transformation:

>>> import functools
>>> bounding_box_trafo = functools.partial(
...     ddg.visualization.blender.bmesh.cut_bounding_box,
...     distances=np.array([0.8, 0.8, 2 * 0.2 * np.pi]),
...     center=np.array([0, 0, -0.2]),
... )
>>> bobj_bounded = ddg.to_blender_object(
...     helicoid_discrete, bmesh_transformations=[bounding_box_trafo]
... )

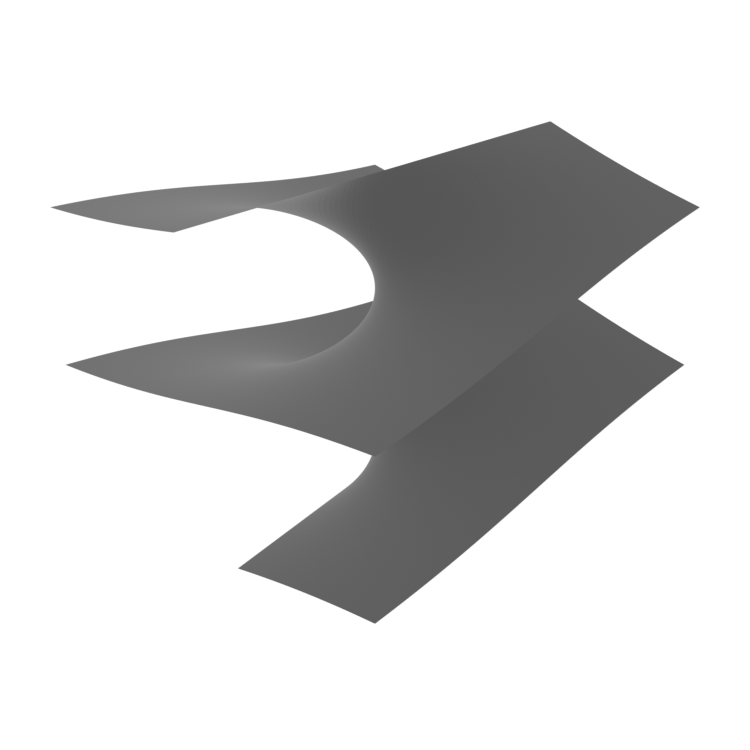

Doing this, we get this somewhat better image:

For convenience, we also have the helper function to_blender_object_helper() to implicitly render SmoothNet (or SmoothCurve) directly, without converting it to DiscreteNet objects first.

All the steps to render the helix can alternatively be done using to_blender_object_helper() by doing the following:

>>> def helix_parametrization(t):
...     return np.array([np.cos(t), np.sin(t), 0.1 * t])
...

>>> helix_smooth = ddg.SmoothCurve(helix_parametrization, [-np.inf, np.inf])
>>> bobj_bounded = ddg.to_blender_object_helper(
...     helix_smooth,
...     sampling=[0.1, 500, "c"],
...     bounding_box=[np.inf, np.inf, 2 * 0.1 * np.pi],
... )

Additionally, the helicoid is analogously rendered by:

>>> def helicoid_parametrization(u, v):
...     return np.array([u * np.cos(v), u * np.sin(v), 0.2 * v])
...

>>> helicoid_smooth = ddg.SmoothNet(
...     helicoid_parametrization, [[-np.inf, np.inf], [-np.inf, np.inf]]
... )
>>> bobj_bounded = ddg.to_blender_object_helper(
...     helicoid_smooth,
...     sampling=[0.02, 300, "c"],
...     bounding_box=[0.8, 0.8, 2 * 0.2 * np.pi],
... )

Note

For SmoothNet, to_blender_object_helper() only supports bounding box centered at \((0,0,0)\).
